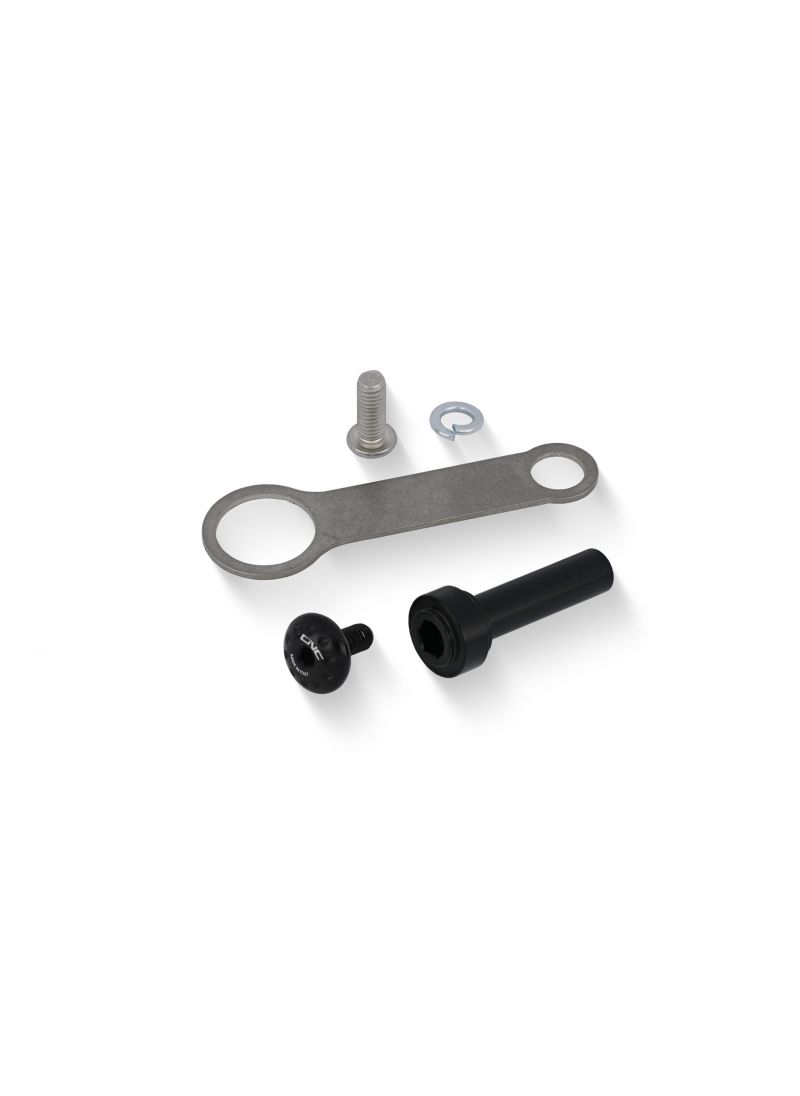

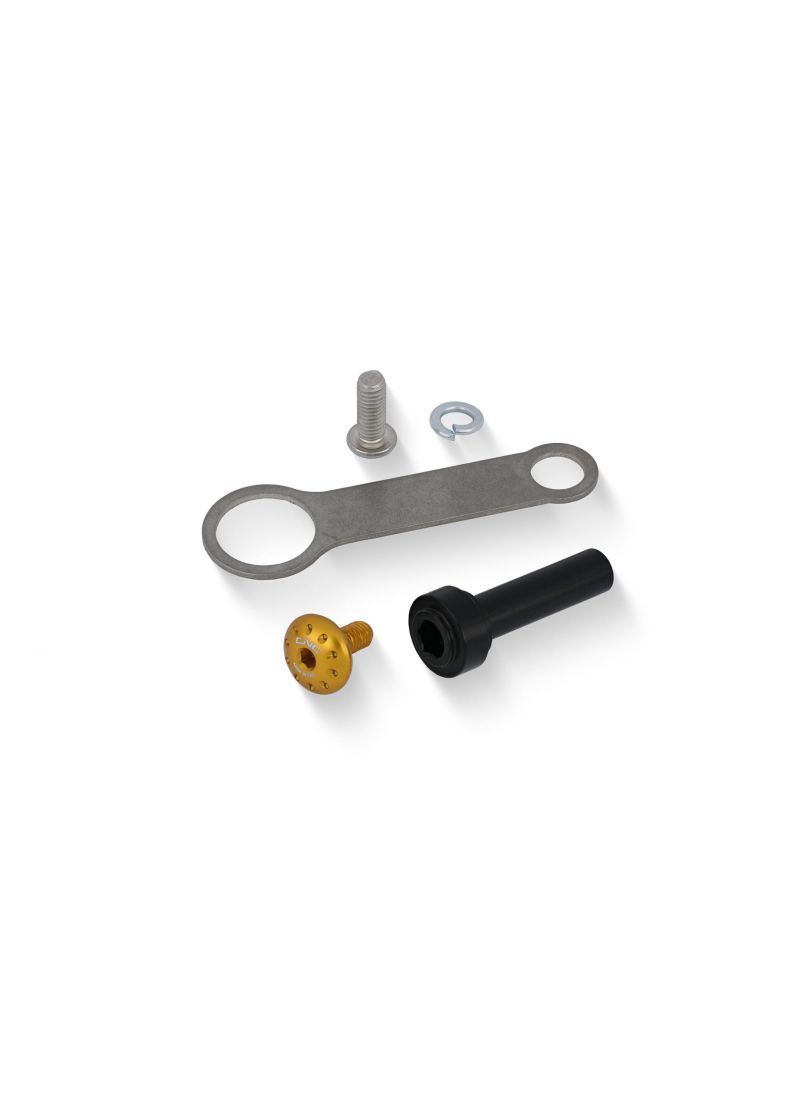

Fluid Tank Mounting Kit for Brembo RCS
Kit for Mounting CNC Fluid Tanks on Brembo RCS and RCS Corsacorta Radial Master Cylinder. Available with Red, Gold or Black Bolt.
Another Nifty Product by CNC Racing. This bolt-in-Bolt Allows You to Install a Brake Fluid Reservoir on Your Brembo RCS Brake or Clutch Master Cylinder, While Looking Great and Offering You Full Personalization in Terms of Placement (Angle and Height).
Clever, Simple and Very Beautiful. A great upgrade for your brembo rcs kit, with little effort, just the way we like it.
The CNC Racing Bolt Replaces the Stock Hinge Bolt That Keeps Your Brake Lever or Clutch Lever In Place On The Master Cylinder. Fits Without Modifications, A Drop-in Replacement for the Stock Pin.
Fits, Amongst Others:
Brembo RCS19 Brake Master Cylinder
Brembo RCS19 Clutch Master Cylinder
Brembo RCS19 Corsa Corta Brake Master Cylinder
And all other brembo rcs brake and clutch master cylinders that use the same pin.
Designed for use with the cnc racing fluid reservoirs, but can be used with the brembo reservoirs as well.
In that case A rubber Damper Can Be Installed in the CNC Racing Reservoir Support, with an Added Ring to Compensate for the Difference in Thickness between the Stainless Steel CNC Racing Bracket and the Stock Aluminum Bracket.
Installation:
- Remove the Stock Bolt From the Brembo RCS Master Cylinder
- Install the CNC Racing Hinge Pin
- Secure the Pin in Place With the Supplied M6 Bolt and Lock Clip (We advise to use (Loctite) Bolt thread Sealant)
- Install the CNC Racing Bracket to the CNC Racing Brake Fluid Reservoir
- Position the CNC Racing Brake Fluid Reservoir, and Tighten All Bolts
