Pramac Stuurconsole knoppen links kit Race - Pramac Limited Edition Ducati 1098S (2007-2009)

Pramac Racing Limited Edition

The switch body is machined from full 7075 aluminium (Ergal) bars and has then undergone a hard black anodizing process that enhances processing with CNC machinery. All the buttons compliant with the IP67 military standard that certifies the switch itself is water resistant. The operation of all buttons is guaranteed by over 700,000 cycles.
Assembly is very easy and plug&play: just dismantle the original switch with the tools recommended by the Manufacturer and the master cylinder clamp; then fit the CNC Racing switch connecting the plug to the bike original cable. Nothing else is required and you can always go back to the original configuration without any modification.

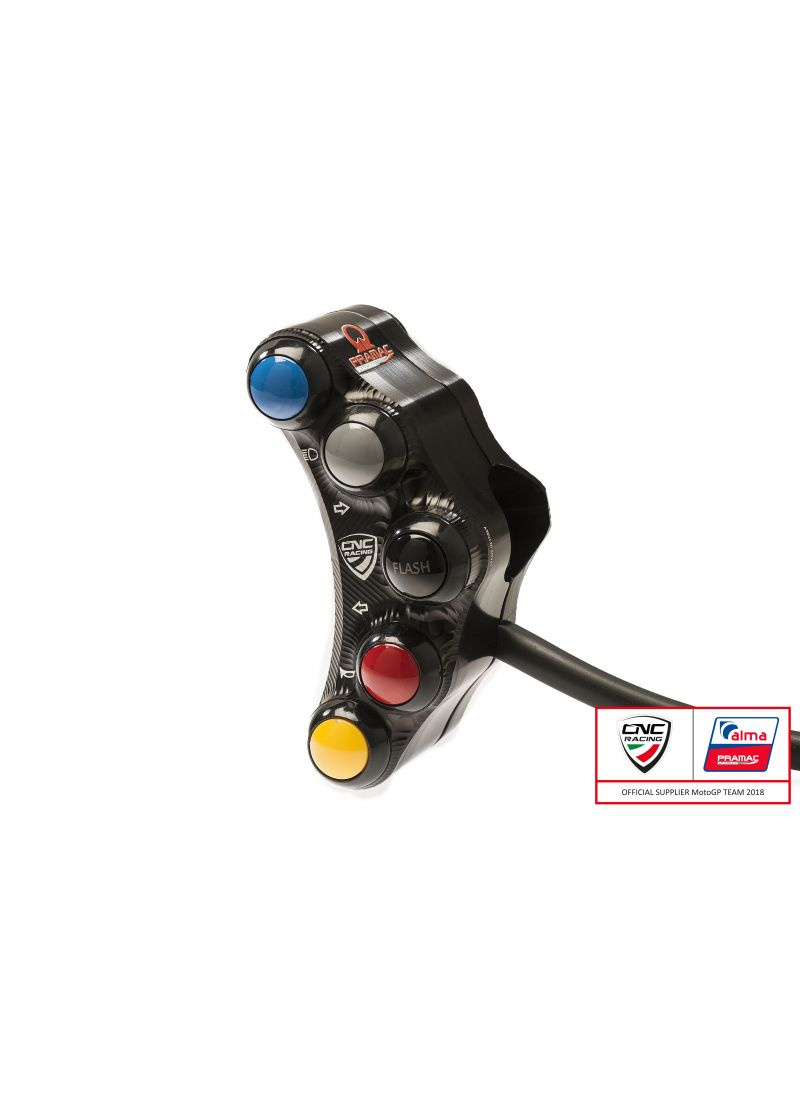

Front buttons
Blue - Beam
Yellow - Turn indicator right
Black - Mode
Green - Turn indicator right
Grey - Horn

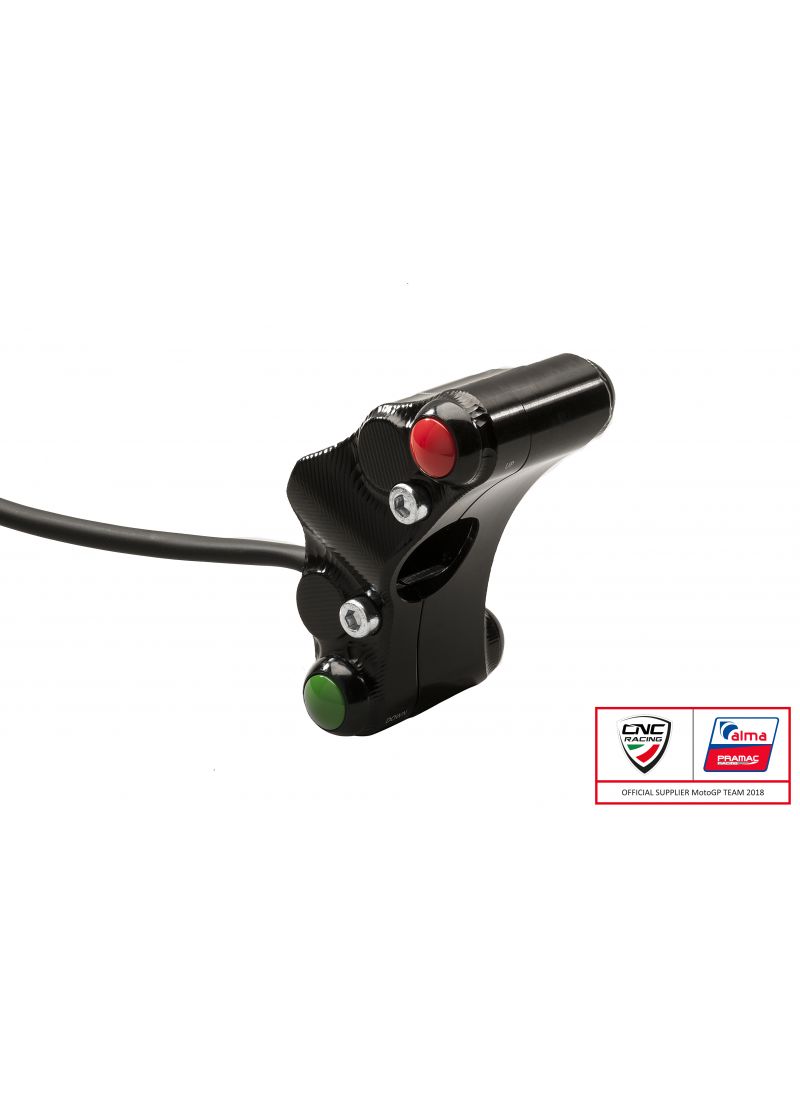

Rear Buttons
Red - UP
Green - Down

Fits:
Ducati Superbike 1098 R 2007 - 2008 - 2009 - 2010 - 2011
Ducati Superbike 1098 S 2006 - 2007 - 2008 - 2009 - 2010 - 2011
Ducati Superbike 1098 2006 - 2007 - 2008 - 2009
Ducati Superbike 1198 S 2008 - 2009 - 2010 - 2011 - 2012
Ducati Superbike 1198 2009 - 2010 - 2011 - 2012
Ducati Superbike 848 EVO 2010 - 2011 - 2012 - 2013
Ducati Superbike 848 2007 - 2008 - 2009 - 2010 - 2011 - 2012 - 2013
Ducati Superbike Desmosedici RR 2007 - 2008 - 2009 - 2010
