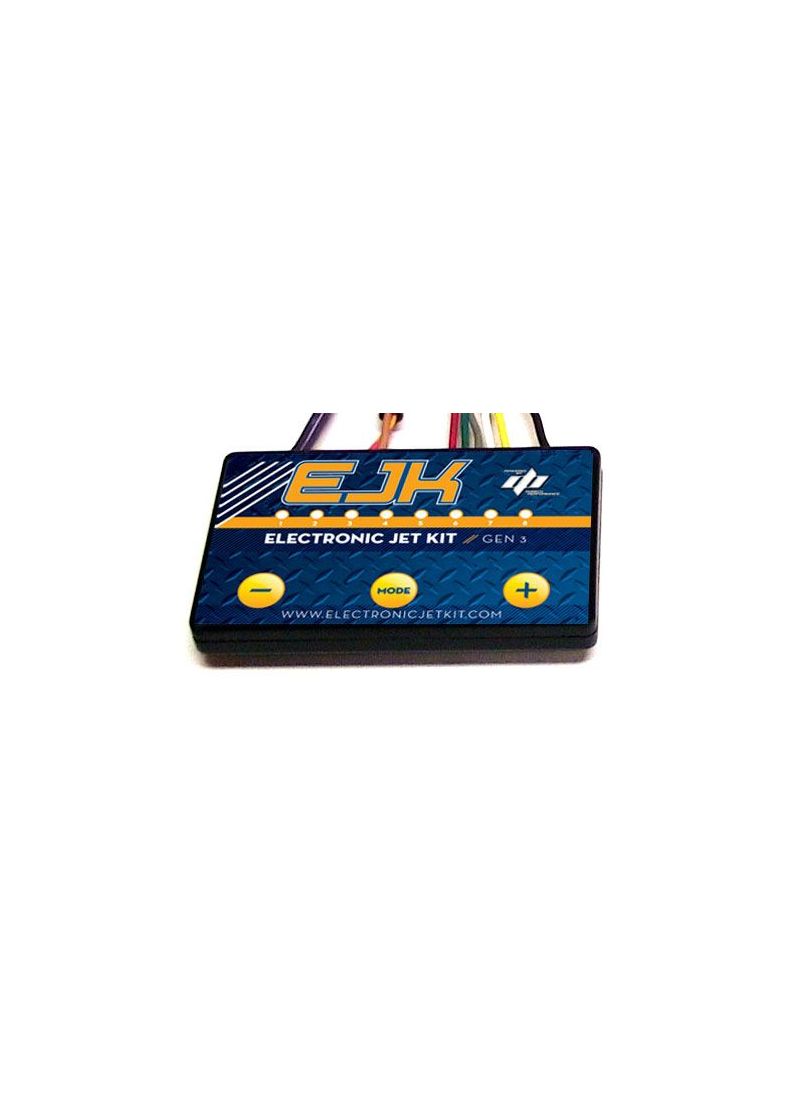

EJK Electronic Jet Kit Gen 3 tune module for Kawasaki ZX-6R (2005-2006)
9140124
Reguliere prijs
€300,00 EUR
Inclusief btw.
Verzending wordt berekend bij het afrekenen.
Estimated Shipping Widget will be displayed here!
Direct meer rijplezier met de EJK (Electronic Jet Kit) Gen 3 tuning module for Kawasaki ZX-6R (2005-2006)
- Snel en eenvoudig te installeren – plug & play
- Voorgeprogrammeerd voor Stage 1-modificaties
- Geen laptop of software nodig
- Soepeler, krachtiger en responsiever motorkarakter
- Volledig instelbaar voor wie verder wil finetunen
De Electronic Jet Kit (EJK) voor EJK Electronic Jet Kit Gen 3 tune module for Kawasaki ZX-6R (2005-2006) is dé oplossing voor wie meer uit zijn motor wil halen zonder ingewikkelde software of dure dyno-sessies. Dankzij plug & play aansluitingen is montage binnen enkele minuten geregeld. De module wordt geleverd met basisinstellingen voor Stage 1 (aftermarket uitlaat en luchtfilter), zodat je direct profiteert van een betere gasrespons en meer rijplezier. Wie meer wil, kan eenvoudig finetunen via de overzichtelijke LED-zones (groen, geel, rood).
Plug-and-play tuning module
Easy to adjust
Ready to install, comes with model-specific plugs
Smart Load-Based system
Why the EJK?
Tuning Made Easy, simple. We all love the KISS principle (Keep It Stupid Simple), which is what the EJK offers. Full range tunability, without the need for a Dyno test bench or expertise. The EJK offers smart Load-Based technology, that helps you improve your bike without hassle.
What is the EJK?
The EJK (Electronic Jet Kit) module is a piggyback tuning module for motorcycles with Electronic Fuel Injection. It is installed between the vehicle computer (ECU) and the fuel injectors, altering the signal from the computer to the injectors in order to improve the bike's performance and fuel response.
Most bikes come from the factory with sub-optimal fueling. They are tuned to the needs for environmental approval, not for optimal driving. And the ECU's are a closed system, you can't change anything to it as user. The EJK injection module changes that, allowing you to make small changes and giving you a stable platform to optimize your bike.
What makes the EJK stand out?
Smart technology at a low price. Most tuning module require expert knowledge and a thick wallet. The EJK keeps tuning simple, thanks to Load-Based Technology: the module changes fueling according to the demands placed on the engine, the (mechanical) load. It offers true tuning, at a very modest price. Simple, Easy, Affordable.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Functie | Omschrijving |
| GEEN | Feature is NOT enabled and will be skipped over when navigating through features with MODE button. |
| GROEN BRANDSTOF | Feature allows fuel adjustment when the Green zone is active which is typically during idle and cruising conditions. |
| GEEL BRANDSTOF | Feature allows fuel adjustment when the Yellow zone is active which is typically during acceleration conditions. |
| ROOD BRANDSTOF | Feature allows fuel adjustment when the Red zone is active which is typically during full throttle conditions. |
| GRN LWR SW PT | Feature allows adjustment of when the Green zone engages. Typically relates to an RPM value to determine if fuel adjustment should be allowed at idle or not. |
| YEL LWR SW PT | Feature allows adjustment of when the Yellow zone engages. |
| RED LWR SW PT | Feature allows adjustment of when the Red zone engages. |
| ACCEL PUMP FUEL | Feature allows fuel adjustment when the Accel Pump is active. |
| DECEL FUEL | Feature allows fuel adjustment when the vehicle is de-accelerating at a moderate to high rate. |
| GRN UPR SW PT | Feature allows adjustment of when the Green zone shuts off. Typically relates to an RPM value to determine if fuel adjustment should be allowed above a mid-range cruising RPM. |
| VCA SW PT | Represents transition between factory open loop and closed loop. When the LED display shows a solid BLUE light in the 8th position then the controller is interfacing with the ECU closed loop mode. Mode rarely needs to be adjusted. |
| CLOSED LOOP FUEL | Feature allows fuel adjustment when the VC zone is active. Feature implements an indirect fueling method where the O2 signal is being manipulated which causes the ECU to make fuel changes. Only affects fueling while ECU is in closed loop mode. |
| VC OFFSET | Voltage Control Offset. Given a sensor input signal between 0-5 volts this feature will offset the voltage a varying amount. |
| MAX BOOST PRESSURE | Represents the maximum amount of boost pressure the vehicle can produce. |
| MAX PRESSURE FUEL | Feature allows fuel adjustment when Pressure zone is active. |
-
NO COMPUTER NEEDED
This EFI controller is one of the only ones on the market which allows a large range of adjustability without the use of a computer. We like to use the term 'on-the-fly' tuning. You can literally drive the vehicle, make setting adjustments, and instantaneously feel the results. Obviously for safety purposes we recommend you pull over to the side before making adjustments. Some after-market EFI controllers like to claim 'on-the-fly' tuning which to them means toggling only between a couple preset maps. The controller actually has 11,390,625 available maps in the unit which are accessible without using a computer program to reprogram the unit. There does exist a computer program called POWERLAB and the controllers can be reprogrammed by a computer, but most users do not require this ability. Why deal with the complexity? It's an Electronic Jet Kit to make fuel injection tuning easy, simple, and fast so you can enjoy more time riding.
-
NO DYNO REQUIRED
You do not have to be a professional mechanic or tuner and have access to a dynamometer in order to tune your vehicle with the EFI controller. Knowledge and good equipment obviously are a huge plus, but you can do just as good a job and sometimes better by tuning in real world riding situations. The controller allows this by breaking down a drive cycle into very understandable zones to make adjustments. Most controllers have the basic Idle/Cruise, Acceleration, and Full Throttle zones to adjust. Every rider can understand this terminology. The greatest advantage about tuning your vehicle yourself is your ride will be custom set up to your driving style.
-
Plug N' Play Installation - Minutes to Install, Base Settings are Preset
All of the offered controllers are plug n' play installations and can be done in a manner of minutes instead of hours. All you have to do is locate the OEM injector connections on your vehicle. Most of the time this will only require you to remove a few components to gain access to these injector connections. A number of new applications will also require you to find the O2 connections on your vehicle if present. Power for the unit is gained through the injector connections and a black ground wire just needs to be attached to the negative terminal on the battery if present or by a metal screw onto the vehicle frame. After physically installing the controller in most cases you are all set to go on a test ride. The unit comes pre-programmed for a stage 1 setup for each application. After your initial test ride you then can make some fine tune adjustments which may be required based upon your modifications.
-
Uses Unique Load Based Technology
The controller uses Load Based Technology which sets it apart from most of the competition. Most EFI controllers use what is called 'Alpha-N' Tuning Technology. Alpha-N tuning is associated with just using Throttle Position (TPS) and RPM as the factors to make tuning adjustments. Load Based Technology differs by using Rate, TPS and RPM as the key factors for adjustment. Load Based tuning allows a user to tune their vehicle for every gear and for all riding conditions. Load can easily be explained by stating that riding up a hill puts more "load" on the vehicle than driving on a flat road, but yet the same TPS and RPM can be achieved in both circumstances.
-
Offers Full Range Tunability
The controller is sold as an Electronic Jet Kit. Like carburetor jet kits of the past the controller offers a range of adjustability to tune your vehicle. Instead of physical jets and needles the controller has this adjustability built into the unit and can quickly be adjusted while riding the vehicle. Essentially with all EFI vehicles software has replaced some hardware. The controller can be installed and set to actually allow the user to still run a stock configuration, but allows the user to ADD or PULL fuel within easy to understand tuning zones.
-
Does Not Interfere with Stock ECU Operation
This is a very common feature of all after market EFI controllers, but needs to be stated to reassure all end users. The controller does not trip any engine codes or affect the ECU operation in any way.
-
Simple Push Button Adjustment Interface
The controller offers 'on-the-fly' adjustment using three push buttons on the label interface. The three buttons are labeled MODE, PLUS, and MINUS. With power supplied to the box by either starting the vehicle or just turning the key on, the adjustment modes are accessed by pressing the MODE button. Light setting changes are then made for each respective mode by pressing the PLUS and MINUS buttons. No extra tools are required to make tuning adjustments.
-
Water-Resistant
The hardware components within the controller are covered with a substance to make the controller water-resistant. The controller is still an electrical device and without this coating would short-circuit when in contact with water based substances. The controller is NOT 100% water proof, but will continue to function properly through rainstorms, snow, washing your vehicle, etc.
-
2-Year Warranty
The controllers come with a two (2) year warranty from date of purchase against original defects in materials and workmanship. Should the controller fail to perform then the manufacturer will repair or replace the unit to the original retail purchaser at no charge except for shipping charges back to the manufacturer. Proof of purchase may be required.
NOTE: DO NOT cut any wires or apply dielectric grease to the terminals inside any connectors. Doing so will automatically void the warranty on your EJK controller.
The controller does NOT void any OEM vehicle warranty. A common mispractice of dealers is to tell customers certain products will void their newer vehicle's warranty. The Magnuson-Moss Warranty Act protects consumers from this practice.
-
Compact Size - 5.6cm H x 8.7cm W x 1.25cm D
The EJK controller is one of the smallest controllers on the market and is equivalent in size to a credit card. The small size helps with installation to place the controller in locations not to affect the handling of any vehicle and still allow access to make adjustments if necessary.
Veelgestelde vragen (FAQ)
Hoe moeilijk is de installatie?
Dankzij plug & play connectors en de juiste basisinstellingen is de montage in enkele minuten klaar.
Moet ik zelf instellingen aanpassen?
Voor Stage 1-modificaties is dit niet nodig. Voor wie verder wil finetunen, zijn de zones eenvoudig te wijzigen.
Wat merk ik tijdens het rijden met de EJK Electronic Jet Kit Gen 3 tune module for Kawasaki ZX-6R (2005-2006)?
Een soepelere gasaanname, krachtigere acceleratie en meer stabiliteit in elk toerengebied.
