Blipper Quick Shifter - CNC Racing Ducati Diavel V4 RS (2025+)
Estimated Shipping Widget will be displayed here!

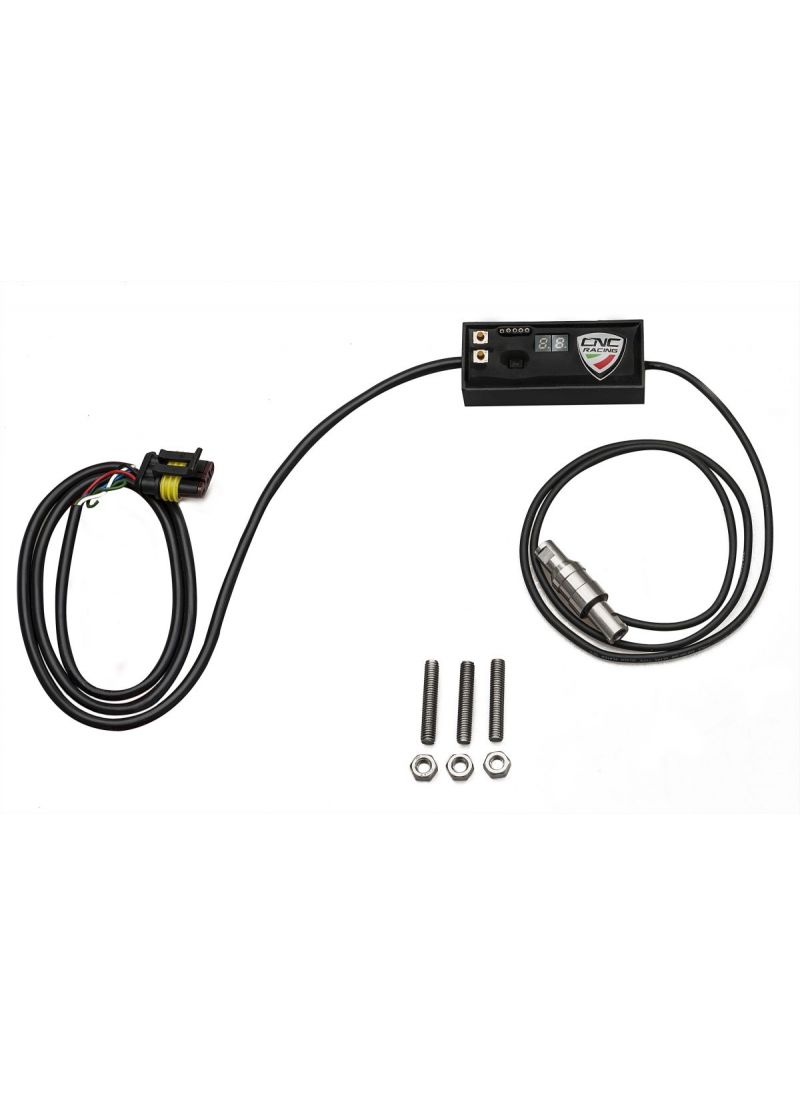

Blipper Quick Shifter - CNC Racing
- Up en Down shifter ('Blipper' - Push en Pull)
- Levering met alle benodigde montagematerialen
- Levering inclusief plug-and-play draadboom

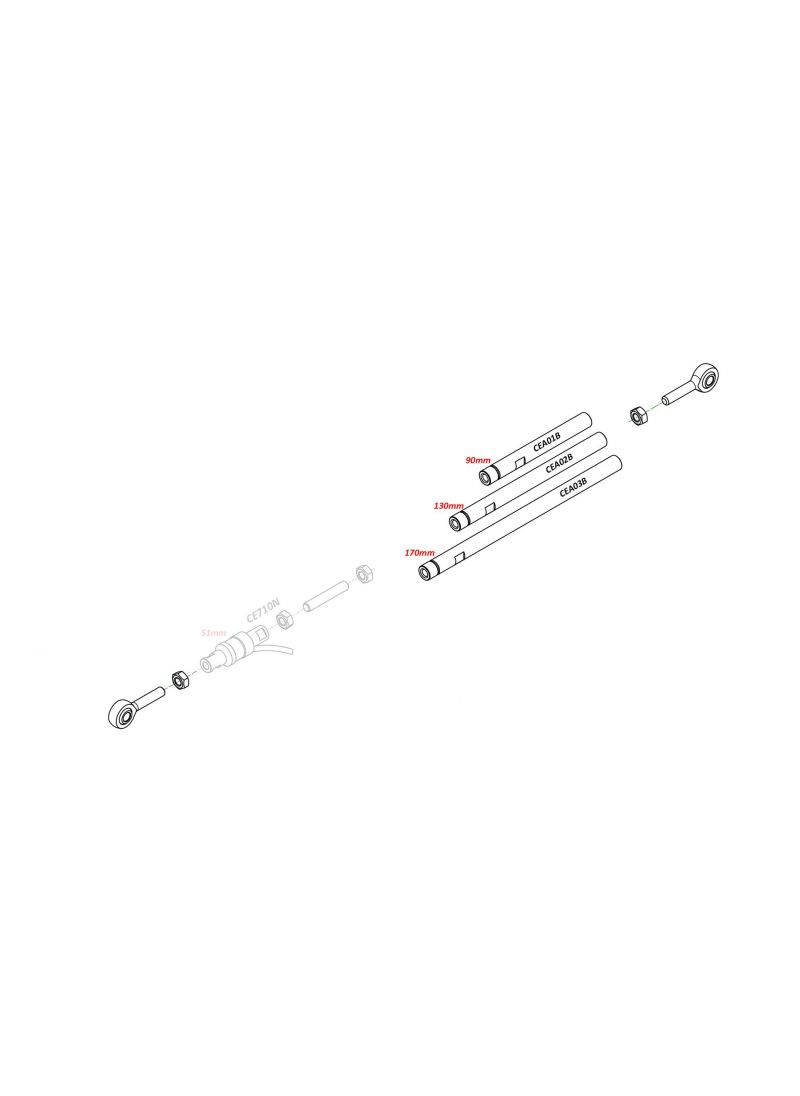

- Optionele schakelstangen: CEA01 (90mm) CEA02B (130mm) CEA03B (170mm)
Model en modeljaar
Belangrijk: geef bij bestelling het motormodel en modeljaar op, dan zorgen wij voor de passende kit.
Belangrijkste eigenschappen:
- 2 parallelle outputs:
- Digitaal: instelbaar als standaard open of standaard gesloten circuit. Kan stand-alone gebruikt worden of in combinatie met een Dynojet PowerCommander of RapidBike module (op aanvraag)
- Analoog: instelbaar van 0-5V in een of beide richtingen. Leesbereik 0-100kgf. Kan verbonden worden met Data Loggers van o.a. Marelli, Motec en vergelijkbaar
- Handleiding voor aansluiting op YEC, HRC en YOSHIMURA ECUs
- Kan altijd gekalibreerd worden
- Registreert Max Load (maximaal gemeten belasting)
- Kan Current Load (huidige belasting) op het display weergeven
- Waarschuwt bij storing (Failure Check)
- Automatic temperature, vibrations and creep adjustment
- Instelbaar op Open/Close: wordt het contact gemaakt of onderbroken
- Direct Cut instelling
- Plug-and-play toepassing met specifieke kabels en stekkers de meeste Japanse sport motoren, evenals voor Aprilia, Benelli, Bimota, BMW, Ducati, KTM, Moto Guzzi, Triumph. Voor alle andere motoren wordt een universeel schakelschema meegeleverd.
Onder andere plug-and-play leverbaar voor:
Aprilia RSV4 (alle) en Tuono V4 (alle)
BMW S1000RR (alle) en S1000R (alle)
Ducati Panigale, Monster 1200, Multistrada 2010+, Hypermotard (alle), Diavel (alle), XDiavel (alle)
Honda CBR1000RR (alle) en CB1000R (alle)
Husqvarna 401 en 701 (alle)
Indian FTR1200 (alle)
Kawasaki ZX10R (alle)
KTM 1290 SuperDuke (alle), 690 Duke (alle) en 390 Duke (alle)
MV Agusta Brutale 3-cilinder (alle), Rivale 3-cilinder (alle) en F3 3-cilinder (alle)
Suzuki GSX-R1000 (alle)
Yamaha R1 (alle), R6 (alle), R7 (2022+), MT09 (alle), MT10 (alle), XSR900 (alle)
Technische eigenschappen:
- Compushift feature (switchable off) automatically evaluate the best killtime for each upshift, according to engine conditions, load, rpm and acceleration, making a choice between 500 different killtime in the range 20÷180ms
- Smoothshift feature to ease the shock loads on the gear box and chain and to lessen loss of traction at upshift, Thanks to this it’s possible to change gear at full throttle even at maximum tilt angle.
- Programmable on/off rpm threshold.
- Adjustable killtime (40÷99ms).
- Dimensions: Φ=15mm, L=55mm,
- Provided with rod already holed and threaded, just to be cut. Available either M6 or M8 holes.
- IP65 guaranteed i.e. Water and Dust proof,
- Really 100% reliable: 1,500,000 cycles @65Kgs load passed,
- Miniature Digital Led panel, no PC needed.
