The switch body is machined from full 7075 aluminium (Ergal) bars and has then undergone a hard black anodizing process that enhances processing with CNC machinery. All the buttons compliant with the IP67 military standard that certifies the switch itself is water resistant. The operation of all buttons is guaranteed by over 700,000 cycles.
Assembly is very easy and plug and play: just dismantle the original switch with the tools recommended by the Manufacturer then fit the CNC Racing switch connecting the plug to the bike original cable. Nothing else is required and you can always go back to the original configuration without any modification.

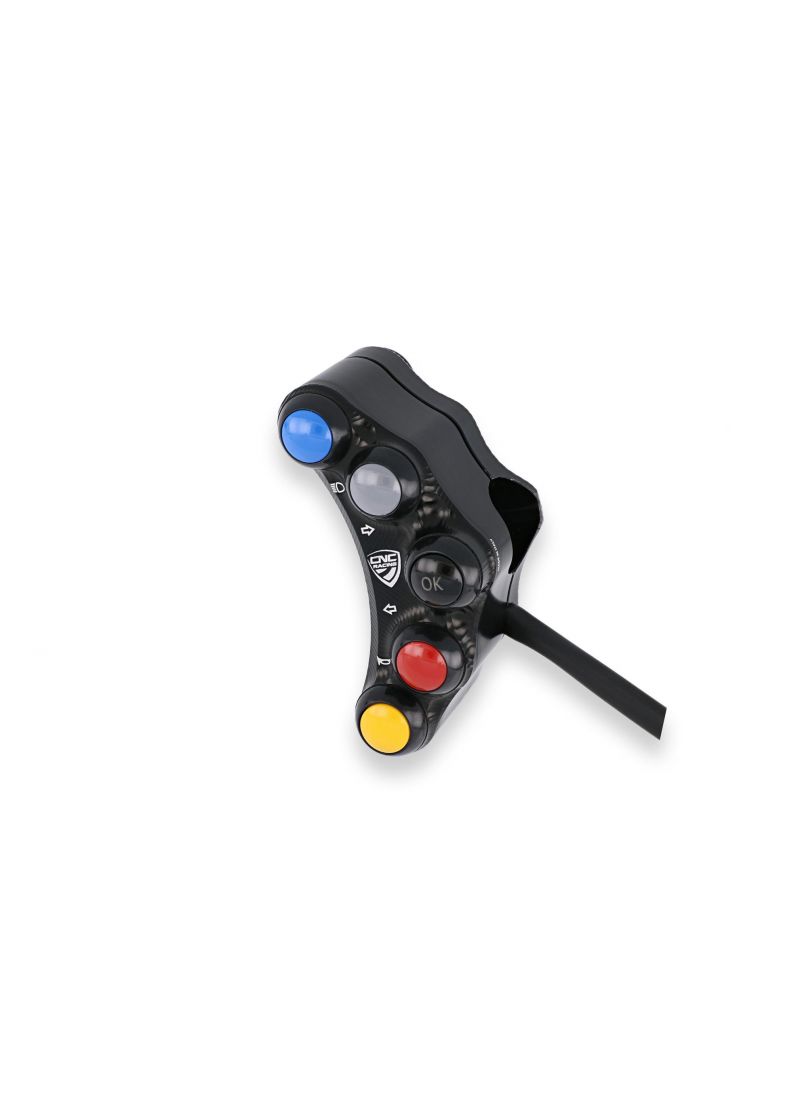

Front buttons
Blue - Beam
Yellow - Turn Indicator Right
Black - Mode
Green - Turn Indicator Left
Grey - Horn

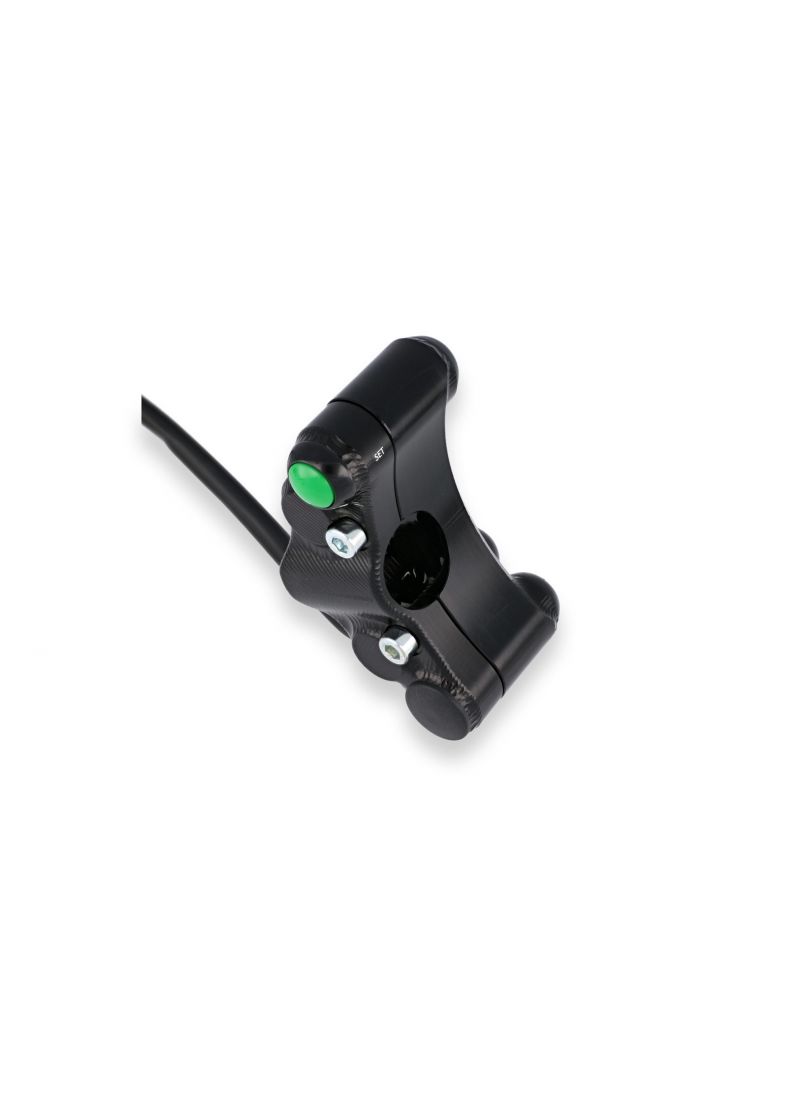

Rear Buttons
Red - Up
Black - Function Switch AB
Green - Down
Fits the following bikes:
- MV Agusta Brutale 3 Cylinders 800 16-19
- MV Agusta Brutale 3 Cylinders 800 RC 18-19
- MV Agusta Brutale 3 Cylinders 800 RR 18-19
- MV Agusta Dragster 800 RC 18-19
- MV Agusta Dragster 800 RR 18-19
