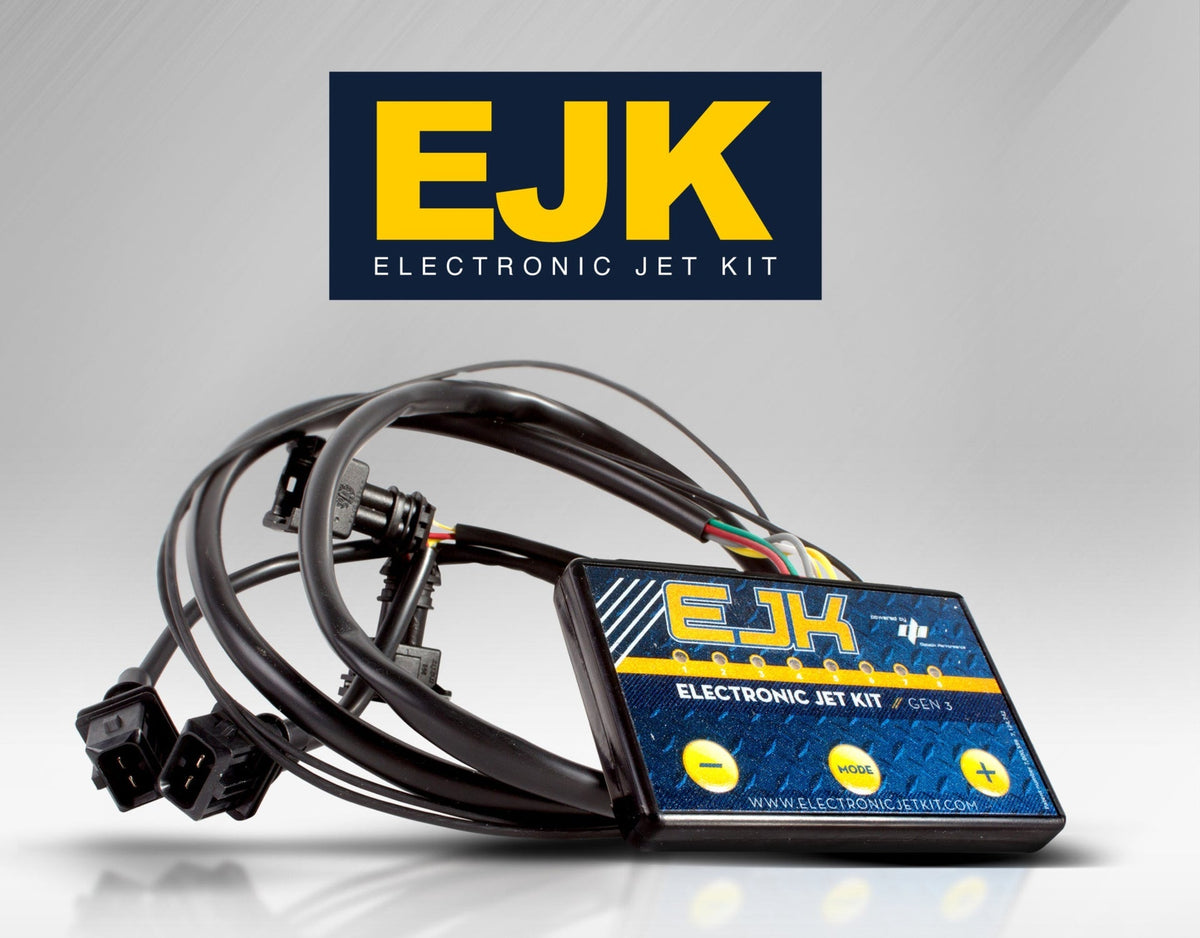

EJK Electronic Jet Kit Gen 3 tune module for Honda CBR250R (2011-2013)
Estimated Shipping Widget will be displayed here!
Direct meer rijplezier met de EJK (Electronic Jet Kit) Gen 3 tuning module for Honda CBR250R (2011-2013)
- Snel en eenvoudig te installeren – plug & play
- Voorgeprogrammeerd voor Stage 1-modificaties
- Geen laptop of software nodig
- Soepeler, krachtiger en responsiever motorkarakter
- Volledig instelbaar voor wie verder wil finetunen
De Electronic Jet Kit (EJK) voor EJK Electronic Jet Kit Gen 3 tune module for Honda CBR250R (2011-2013) is dé oplossing voor wie meer uit zijn motor wil halen zonder ingewikkelde software of dure dyno-sessies. Dankzij plug & play aansluitingen is montage binnen enkele minuten geregeld. De module wordt geleverd met basisinstellingen voor Stage 1 (aftermarket uitlaat en luchtfilter), zodat je direct profiteert van een betere gasrespons en meer rijplezier. Wie meer wil, kan eenvoudig finetunen via de overzichtelijke LED-zones (groen, geel, rood).
EJK Electronic Jet Kit Gen 3 tune module for Honda CBR 250R 2011-2019
Plug-and-play tuning module
Easy to adjust
Ready to install, comes with model-specific plugs
Smart Load-Based system
Why the EJK?
Tuning Made Easy, simple. We all love the KISS principle (Keep It Stupid Simple), which is what the EJK offers. Full range tunability, without the need for a Dyno test bench or expertise. The EJK offers smart Load-Based technology, that helps you improve your bike without hassle.
What is the EJK?
The EJK (Electronic Jet Kit) module is a piggyback tuning module for motorcycles with Electronic Fuel Injection. It is installed between the vehicle computer (ECU) and the fuel injectors, altering the signal from the computer to the injectors in order to improve the bike's performance and fuel response.
Most bikes come from the factory with sub-optimal fueling. They are tuned to the needs for environmental approval, not for optimal driving. And the ECU's are a closed system, you can't change anything to it as user. The EJK injection module changes that, allowing you to make small changes and giving you a stable platform to optimize your bike.
What makes the EJK stand out?
Smart technology at a low price. Most tuning module require expert knowledge and a thick wallet. The EJK keeps tuning simple, thanks to Load-Based Technology: the module changes fueling according to the demands placed on the engine, the (mechanical) load. It offers true tuning, at a very modest price. Simple, Easy, Affordable.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Functie | Omschrijving |
| GEEN | Feature is NOT enabled and will be skipped over when navigating through features with MODE button. |
| GROEN BRANDSTOF | Feature allows fuel adjustment when the Green zone is active which is typically during idle and cruising conditions. |
| GEEL BRANDSTOF | Feature allows fuel adjustment when the Yellow zone is active which is typically during acceleration conditions. |
| ROOD BRANDSTOF | Feature allows fuel adjustment when the Red zone is active which is typically during full throttle conditions. |
| GRN LWR SW PT | Feature allows adjustment of when the Green zone engages. Typically relates to an RPM value to determine if fuel adjustment should be allowed at idle or not. |
| YEL LWR SW PT | Feature allows adjustment of when the Yellow zone engages. |
| RED LWR SW PT | Feature allows adjustment of when the Red zone engages. |
| ACCEL PUMP FUEL | Feature allows fuel adjustment when the Accel Pump is active. |
| DECEL FUEL | Feature allows fuel adjustment when the vehicle is de-accelerating at a moderate to high rate. |
| GRN UPR SW PT | Feature allows adjustment of when the Green zone shuts off. Typically relates to an RPM value to determine if fuel adjustment should be allowed above a mid-range cruising RPM. |
| VCA SW PT | Represents transition between factory open loop and closed loop. When the LED display shows a solid BLUE light in the 8th position then the controller is interfacing with the ECU closed loop mode. Mode rarely needs to be adjusted. |
| CLOSED LOOP FUEL | Feature allows fuel adjustment when the VC zone is active. Feature implements an indirect fueling method where the O2 signal is being manipulated which causes the ECU to make fuel changes. Only affects fueling while ECU is in closed loop mode. |
| VC OFFSET | Voltage Control Offset. Given a sensor input signal between 0-5 volts this feature will offset the voltage a varying amount. |
| MAX BOOST PRESSURE | Represents the maximum amount of boost pressure the vehicle can produce. |
| MAX PRESSURE FUEL | Feature allows fuel adjustment when Pressure zone is active. |
Veelgestelde vragen (FAQ)
Hoe moeilijk is de installatie?
Dankzij plug & play connectors en de juiste basisinstellingen is de montage in enkele minuten klaar.
Moet ik zelf instellingen aanpassen?
Voor Stage 1-modificaties is dit niet nodig. Voor wie verder wil finetunen, zijn de zones eenvoudig te wijzigen.
Wat merk ik tijdens het rijden met de EJK Electronic Jet Kit Gen 3 tune module for Honda CBR250R (2011-2013)?
Een soepelere gasaanname, krachtigere acceleratie en meer stabiliteit in elk toerengebied.
